Yield Strength
Spring steel maintains elastic behavior under repeated loading cycles. This allows the fastener to be installed and removed multiple times without permanent deformation or "setting."
Formed spring steel fasteners offer manufacturers a cost-effective alternative to machined hardware for high-volume runs. Whereas traditional threaded fasteners can require multiple machining operations, our components are formed from spring steel with a 4-slide manufacturing process, delivering consistent performance at lower per-unit costs.
Understanding how spring steel fasteners are manufactured and where they excel can help in identifying the right component for specific assembly challenges. This guide examines the material properties, manufacturing processes, and performance benefits that make these fasteners a preferred choice across broad manufacturing, electronics, HVAC, and industrial equipment applications.
What Are Formed Spring Steel Fasteners?
Formed spring steel fasteners are specialized components designed to secure cables, pipes, panels, and other parts without welding or threaded connections. These fasteners rely on the inherent properties of steel, specifically its ability to flex under load and return to its original shape, to create a reliable holding force. The tension is built directly into the geometry of the part, eliminating the need for secondary locking washers or adhesives.
Formed spring steel fasteners come in a wide array of functional geometries that solve specific assembly hurdles. Some common designs include:
U-Clips
These secure round or rectangular components to panels or mounting surfaces. They are ubiquitous in wire management and tubing applications.

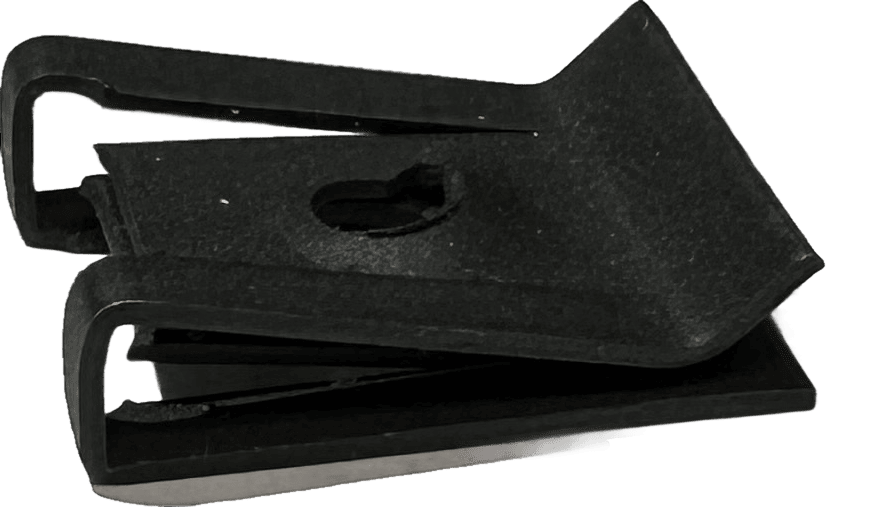

U-Nuts
These combine a formed spring base with integrated threads. They clip onto panel edges, providing a threaded attachment point without welding.
J-Nuts
Similar to U-nuts but with an offset geometry, J-nuts hook over panel edges to enable blind-side mounting where access is limited.
Flat Nuts
These create low-profile threaded mounting points, distributing the load across a wider surface area than a standard hex nut.
Twin Nuts
A specialty design that offers dual threaded positions in a single formed component, reducing part count and assembly time.
Material Properties and Performance
Spring steel’s performance stems from its high carbon content and controlled heat treatment. This combination produces specific material characteristics essential for industrial reliability:
Hardness
Heat-treated components can provide the necessary wear resistance to maintain crimp force and prevent the fastener from "relaxing" over time.
Fatigue Resistance
High-carbon steel withstands vibration and thermal cycling without stress cracking. This is critical for any applications where parts are subject to constant movement or vibration.
Ductility vs. Brittleness
Precise heat treating makes it possible to balance hardness with ductility. This ensures the fastener can be snapped into place without snapping the metal itself.

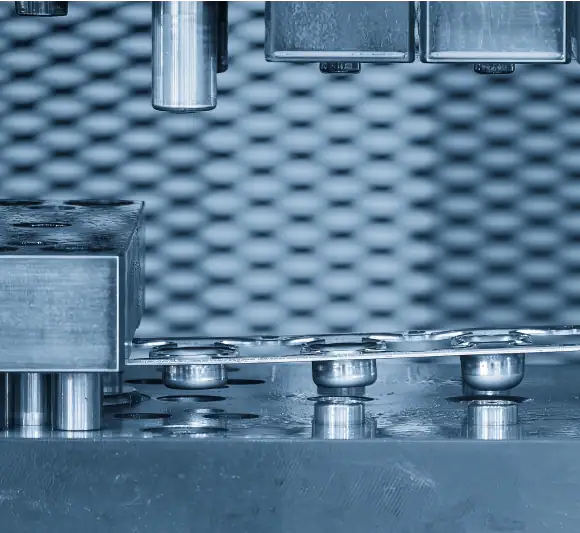

Forming and Stamping Processes
Manufacturing formed spring steel fasteners requires precision to ensure consistent spring tension. Components are often manufactured using progressive stamping, where flat coil stock passes through a series of stations on a die. As the strip advances, dies cut the basic blank, then progressive stations create bends, tabs, and final geometry. ACS Manufacturing works with 1050 cold rolled annealed spring steel work with materials like stainless steel, carbon steel, and aluminum, maintaining strict tolerances across production.
In addition, four-slide machines can be used to form a part from four different directions simultaneously. This configuration supports the following:
- Complex 3D geometries. Creating bends in multiple planes that would otherwise require expensive secondary operations.
- Integrated features. Punching, threading, and multi-angle bending are all completed in a single cycle.
- Lower tooling costs. Four-slide tooling is often more modular and less expensive to maintain.
Benefits of Formed Spring Steel Fasteners Compared to Machined Hardware
When comparing formed spring steel fasteners to machined hardware, several distinct advantages emerge:
Simplified assembly.
Push-on installation often requires no tools, snapping into position instantly.
Vibration resistance.
Constant spring tension prevents loosening in high-vibration environments.
Weight reduction.
Thin-gauge steel provides high strength at a much lower mass than solid machined parts.
The economic advantages of these spring steel fasteners become most significant in production volumes exceeding 1,100 pieces. Our four-slide equipment at ACS Manufacturing runs continuously, producing thousands of parts per shift, far faster than multi-operation machining. Automated feeding and ejection eliminate manual handling, allowing us to keep per-unit costs low for our clients.

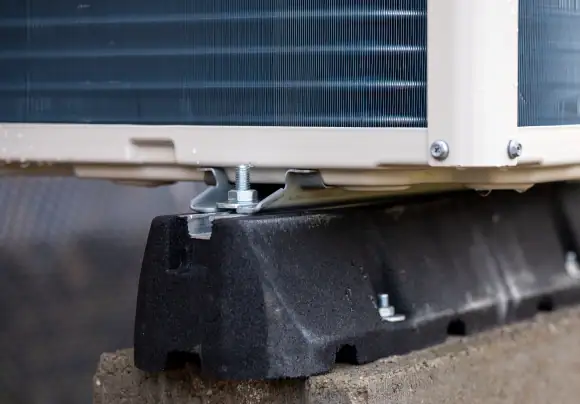

Applications of Common
Fastener Types
U-clips, nuts, and specialty formed spring steel fasteners have diverse industrial fastening applications.
Clips, Nuts, and Specialty Designs
U-Clips provide attachment points for round components like cables, hoses, or tubes. These can be used in cable routing in electronics, pipe support in HVAC systems, or wire management in appliances. Meanwhile, U-Nuts can be used in applications like:
- Panel assembly in construction
- HVAC equipment mounting
- Electrical enclosure fastening
J-Nuts’ offset geometry enables blind-side mounting where access is limited to one side, with applications ranging from furniture assembly to electronics equipment racks. Flat Nuts provide low-profile threaded mounting when height clearance is limited, and the spring steel base distributes load across a wider area than conventional nuts.
In addition to standard formed spring steel fasteners, we can provide custom designs for specialized applications. Custom fasteners from ACS Manufacturing can address unique spacing requirements or proprietary assembly methods.
Formed Spring Steel Fasteners: A Reliable Choice for High-Volume Industrial Applications
Formed spring steel fasteners remain the gold standard for high-volume assembly due to their simplicity and reliability. By utilizing four-slide and progressive stamping, ACS Manufacturing creates complex, high-performance parts that reduce assembly time and overall material costs. We specialize in high-volume production, with MOQs starting at 1,100 pieces and scaling to millions. We also manage coordination with external heat-treating and plating partners to ensure you receive a finished, ready-to-use component.
Whether you need a standard U-clip or a custom-engineered solution, our team is ready to assist. Request a Quote today or explore our complete fastener capabilities to see the difference for high-volume industrial applications.
